Parameterize events

You parameterize events in the following BPM|Flow properties:

Property	Description
Responsible	In this property you assign the users or groups that are responsible for the activity and perform it. In order for the process to be transferred to the BPM\|Flow system, the names of the process participants in Aeneis must match the names stored as users or groups in your BPM\|Flow system. Attention: If the names used for the transfer differ in both systems, the transfer to your BPM\|Flow system will fail.
Description	This property exists only for start events. Here you enter a description of the start event.
Owner	This property exists only for start events. Here you assign the owner. For example, owners can assign tasks to any group or user, archive instances, and view all instances of a particular process. In order for the process to be transferred to the BPM\|Flow system, the names of the process participants in Aeneis must match the names stored as users or groups in your BPM\|Flow system. Attention: If the names used for the transfer differ in both systems, the transfer to your BPM\|Flow system will fail.
Starter	This property exists only for start events. Here you assign the users or groups that are allowed to start the process.
Deployer	This property exists only for start events. Here you enter the users or groups that are allowed to deploy the process as workflow designers.
Section definition	This property exists only for start events. The section definition of the smart form is entered here.
Calculate critical path	This property exists only for start events. Here you specify whether the critical path should be calculated. See also: All information about the calculation of the critical path can be found in the TIM Solutions documentation.

Create and parameterize BPM|Flow events in activities

With a BPM|Flow event, an ActionHandler is triggered when it occurs.

Create BPM|Flow events:

You create BPM|Flow events in the properties of an activity:

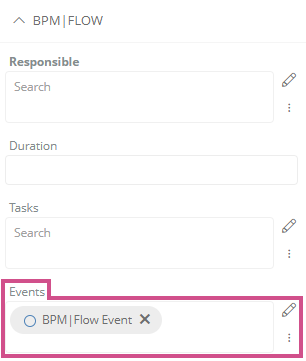

BPM|Flow event in the properties of an activity

Parameterize BPM|Flow events:

You parameterize BPM|Flow events via their properties at BPM|Flow:

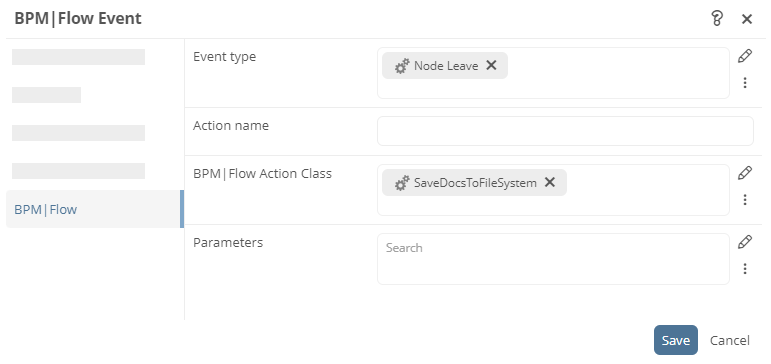

Parameterize BPM|Flow event via properties

Property	Description
Event type	Here you select the type of event that determines when the event is triggered: Node Enter: The event is triggered at the beginning of the activity. Node Leave: The event is triggered when the activity ends.
Action name	Here you can enter an action name.
BPM\|Flow Action class	Here you select the ActionHandler that is triggered in the BPM\|Flow system via the event. See also: For more information about ActionHandler, see the TIM Solutions documentation.
Parameters	Here you define the appropriate parameters for the ActionHandler in the BPM\|Flow Action class property.
